WhatsApp + ChatWoot - Configuration Guide

Overview

Complete guide to install and set up production-ready WAHA and Chatwoot instances on your own infrastructure!

After completing the configuration guide, you’ll have:

• WhatsApp connected to ChatWoot Inbox using WAHA 🧩 ChatWoot App!
• WAHA on http://localhost:3000
• ChatWoot on http://localhost:3009

Requirements

At this point you should have:

• WAHA on http://localhost:3000
• ChatWoot on http://localhost:3009

If you don’t have it - kindly follow WhatsApp + ChatWoot - Installation Guide

ssh -L 3000:localhost:3000 -L 3009:localhost:3009 {user}@{server}

Steps to Configure ChatWoot App

Now you’re ready to setup WhatsApp to ChatWoot connection using WAHA 🧩 ChatWoot App!

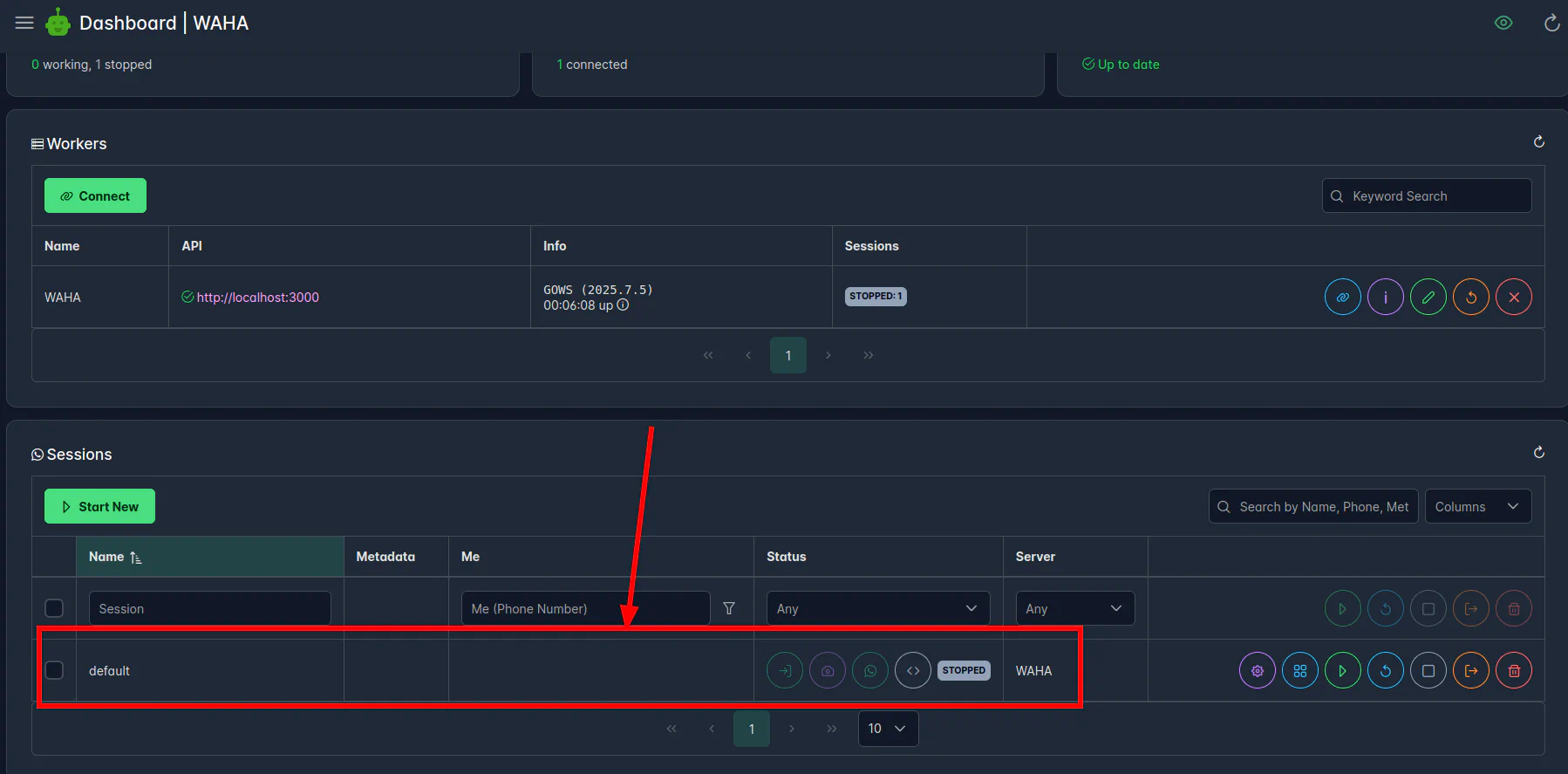

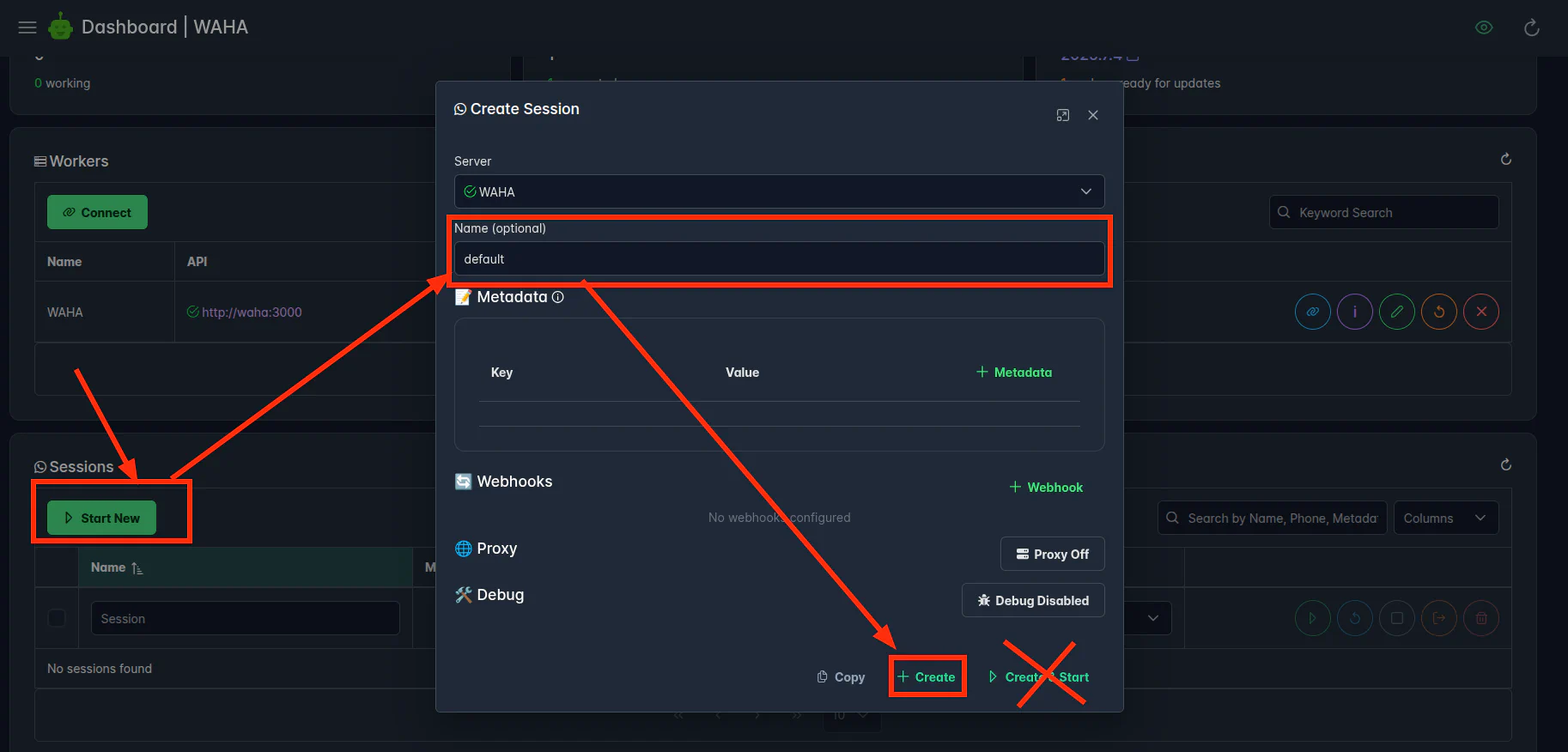

Step 1: Create Session in WAHA

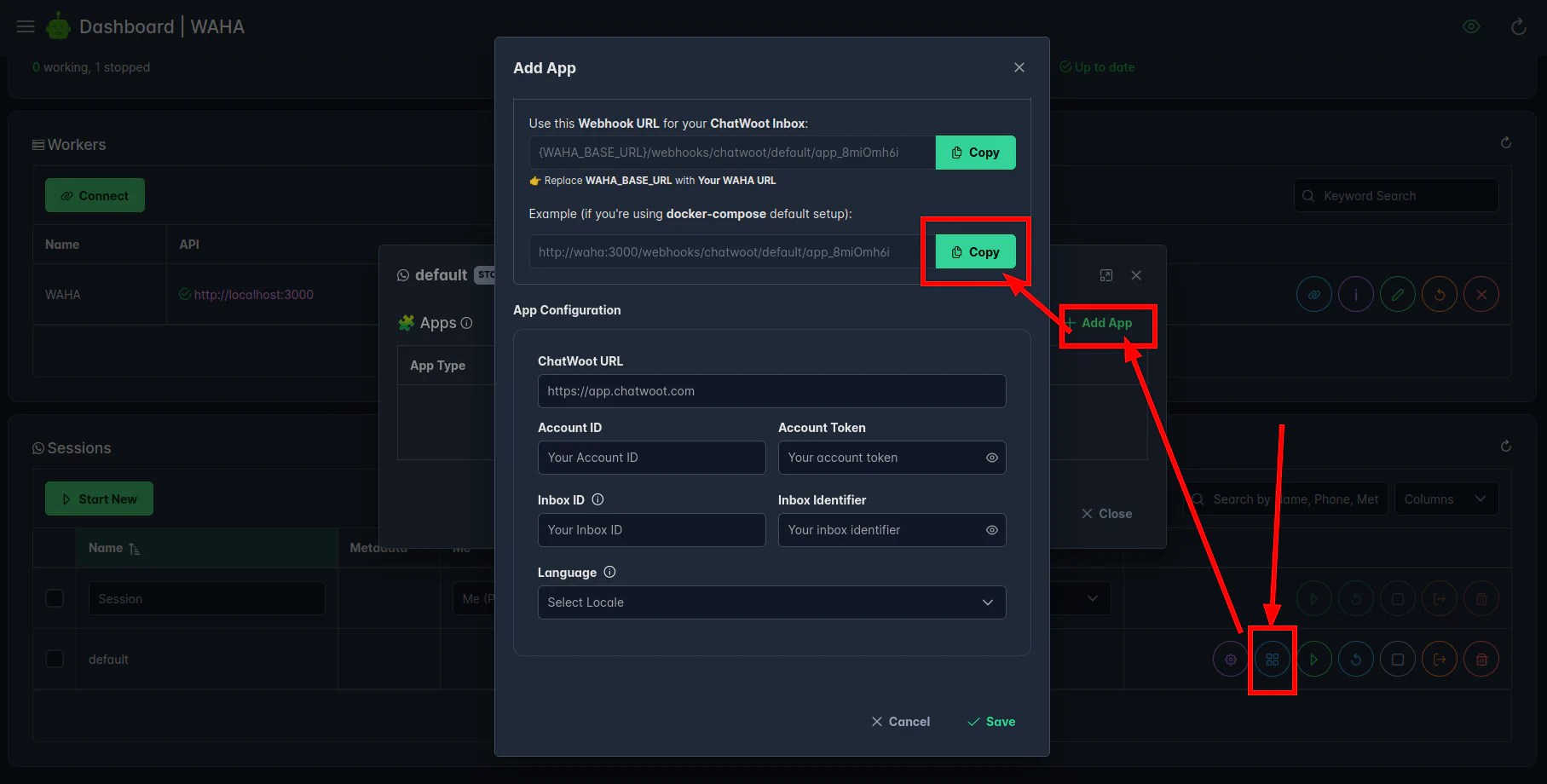

Step 2: Copy Webhook URL in WAHA

• Open http://localhost:3000/dashboard
• Click Apps
• Click Add App
• Copy Webhook URL
• Keep the tab open, we’ll fill the fields

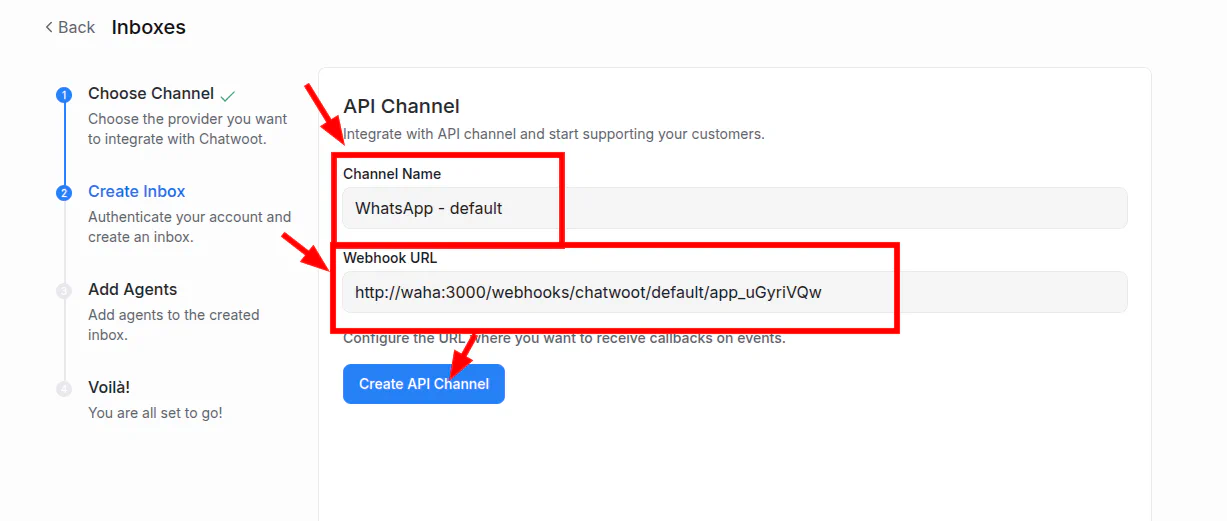

Step 3: Create API Inbox in ChatWoot

• Go to ChatWoot http://localhost:3009
• Open Settings → Inboxes
• Click Add Inbox, choose API
• Set fields as:
  • Name: WhatsApp - default (name can be anything, doesn’t have to follow that pattern)
  • Webhook URL: http://waha:3009/webhook/chatwoot/... - Webhook URL from WAHA
• Finish creation guide

Step 4: Collect ChatWoot Fields for WAHA

Now we’ll need to find those fields in ChatWoot

Check the screenshots below, but here’s the path how you can find the values:

• ChatWoot URL - put http://chatwoot:3009
  • 👉 Note that it’s not localhost, it’s chatwoot!

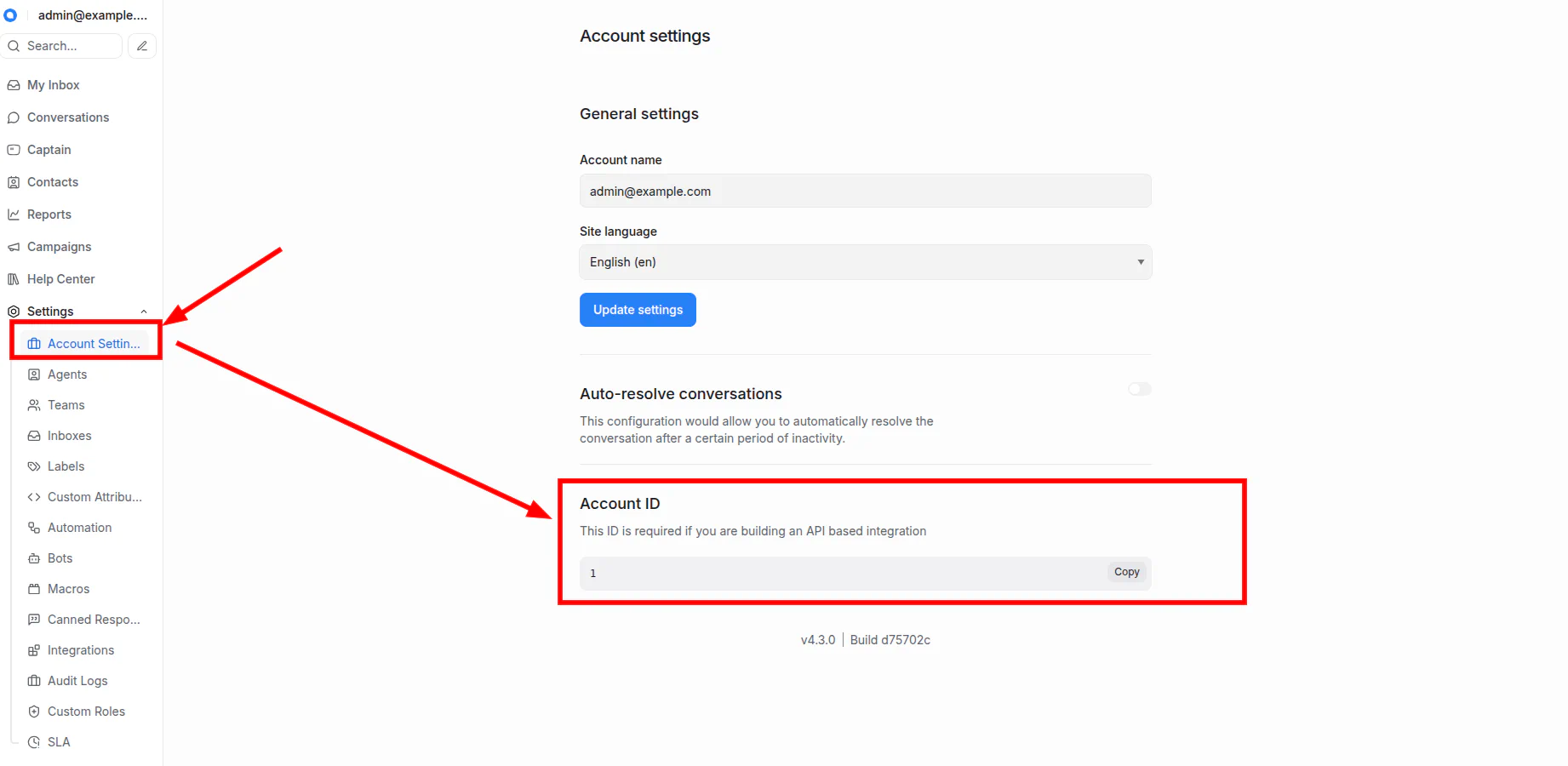

• Account ID - find it on Settings → Account Settings

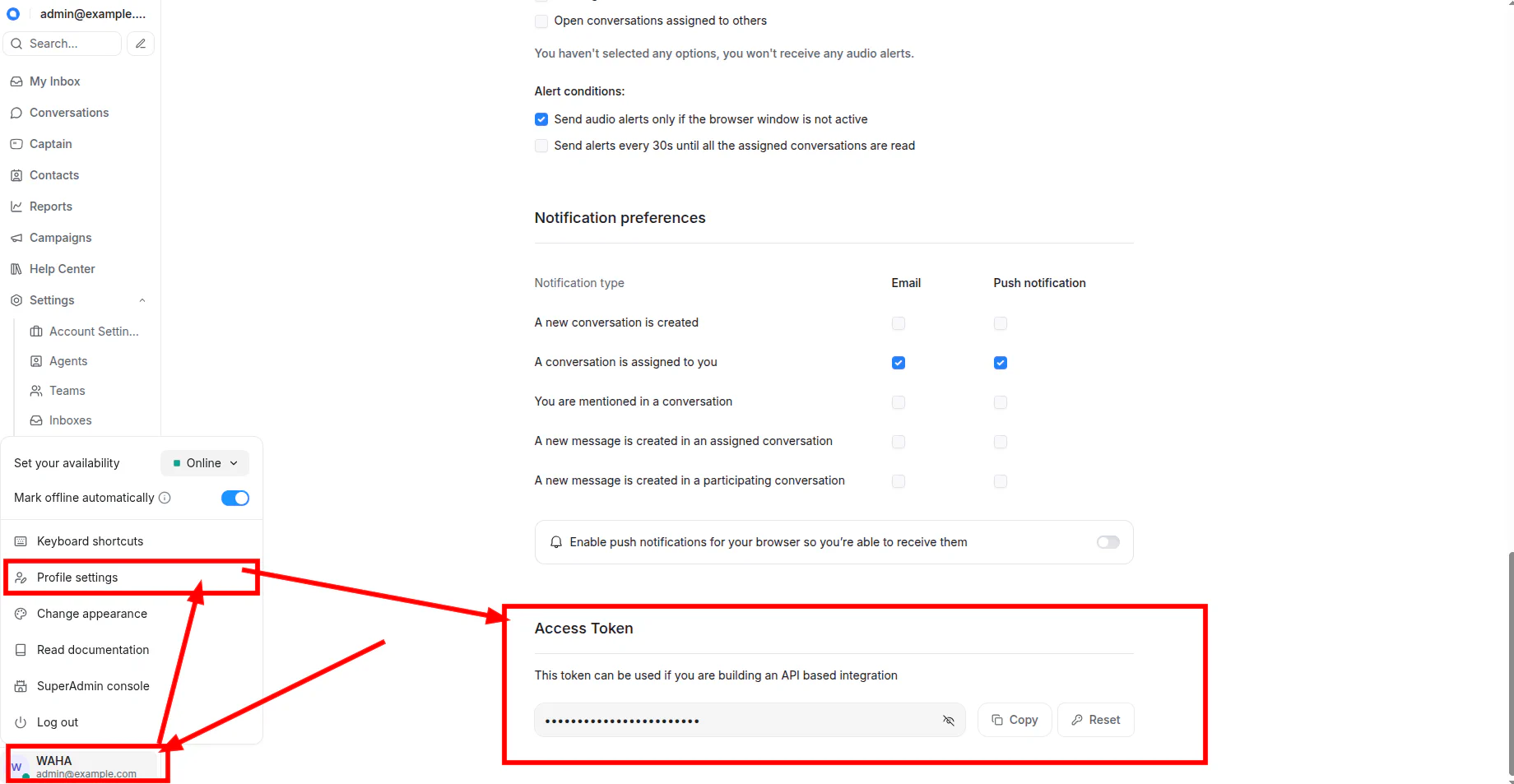

• Account Token - find it on (click on profile) → Profile settings

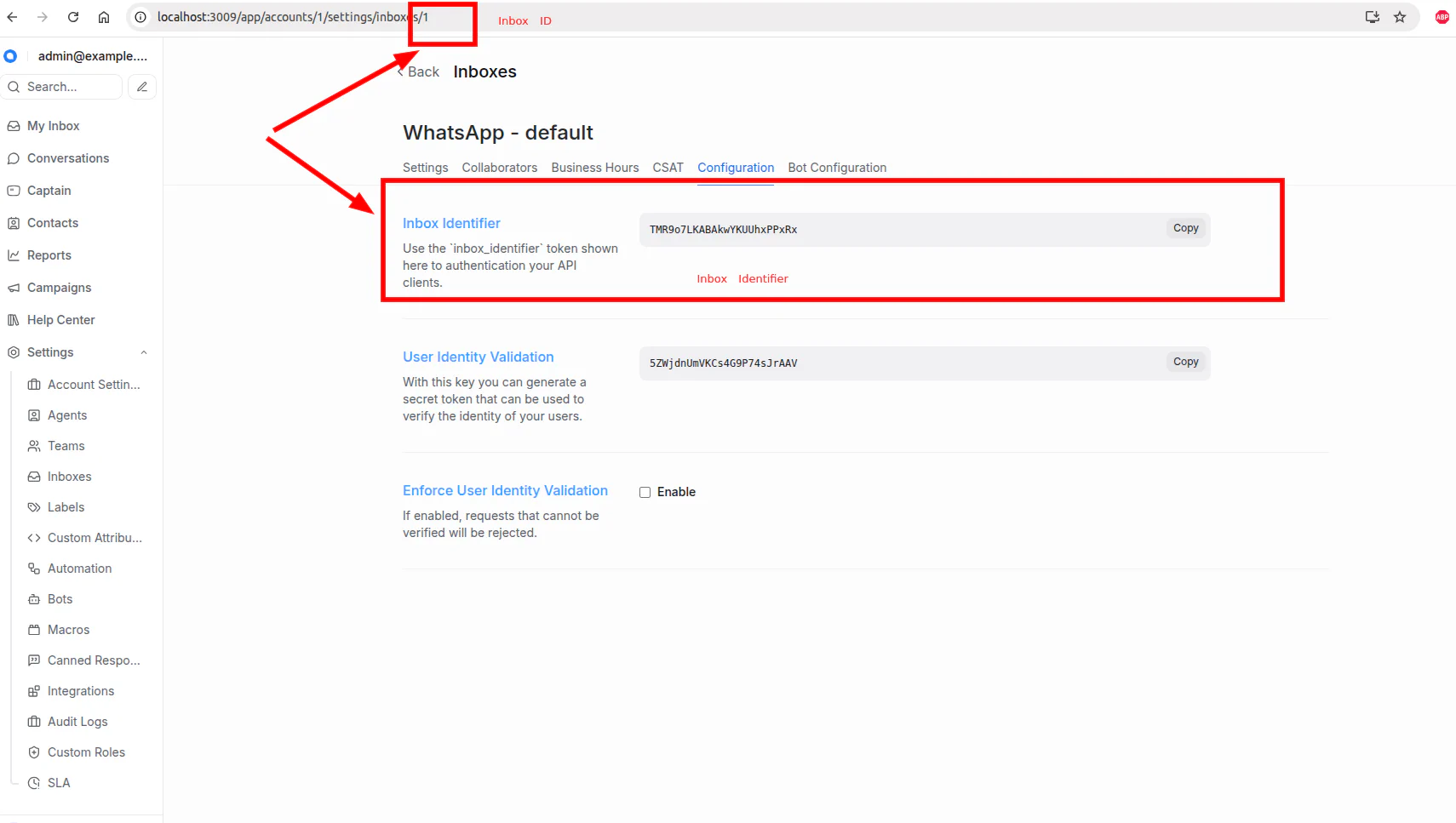

• Inbox ID - find it on Settings → Inboxes → (inspect browser url, the last part)
• Inbox Identifier - find it on Settings → Inboxes → {Inbox} → Configuration

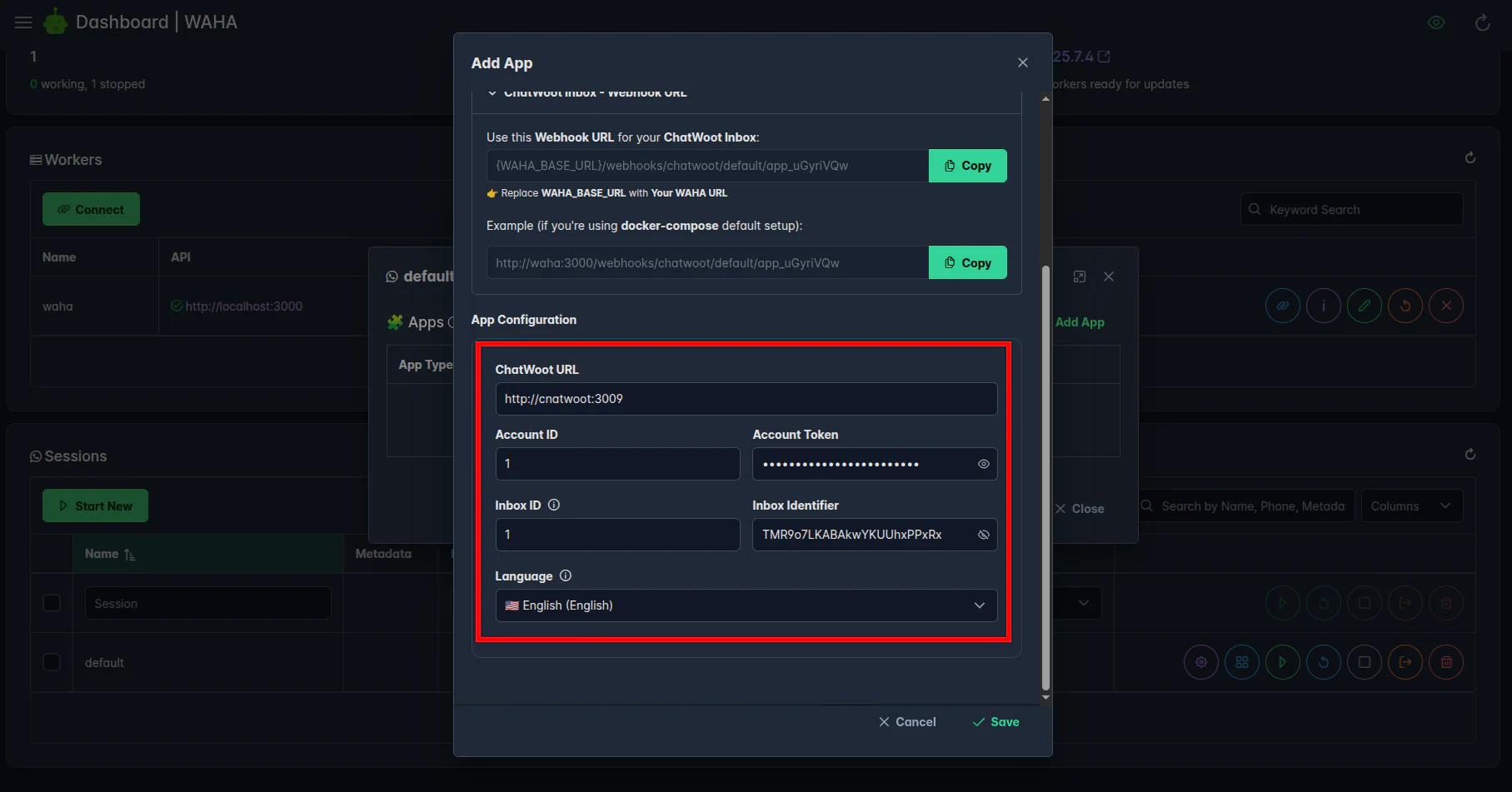

Step 5: Save App Configuration in WAHA

Click Save after you finish all fields.

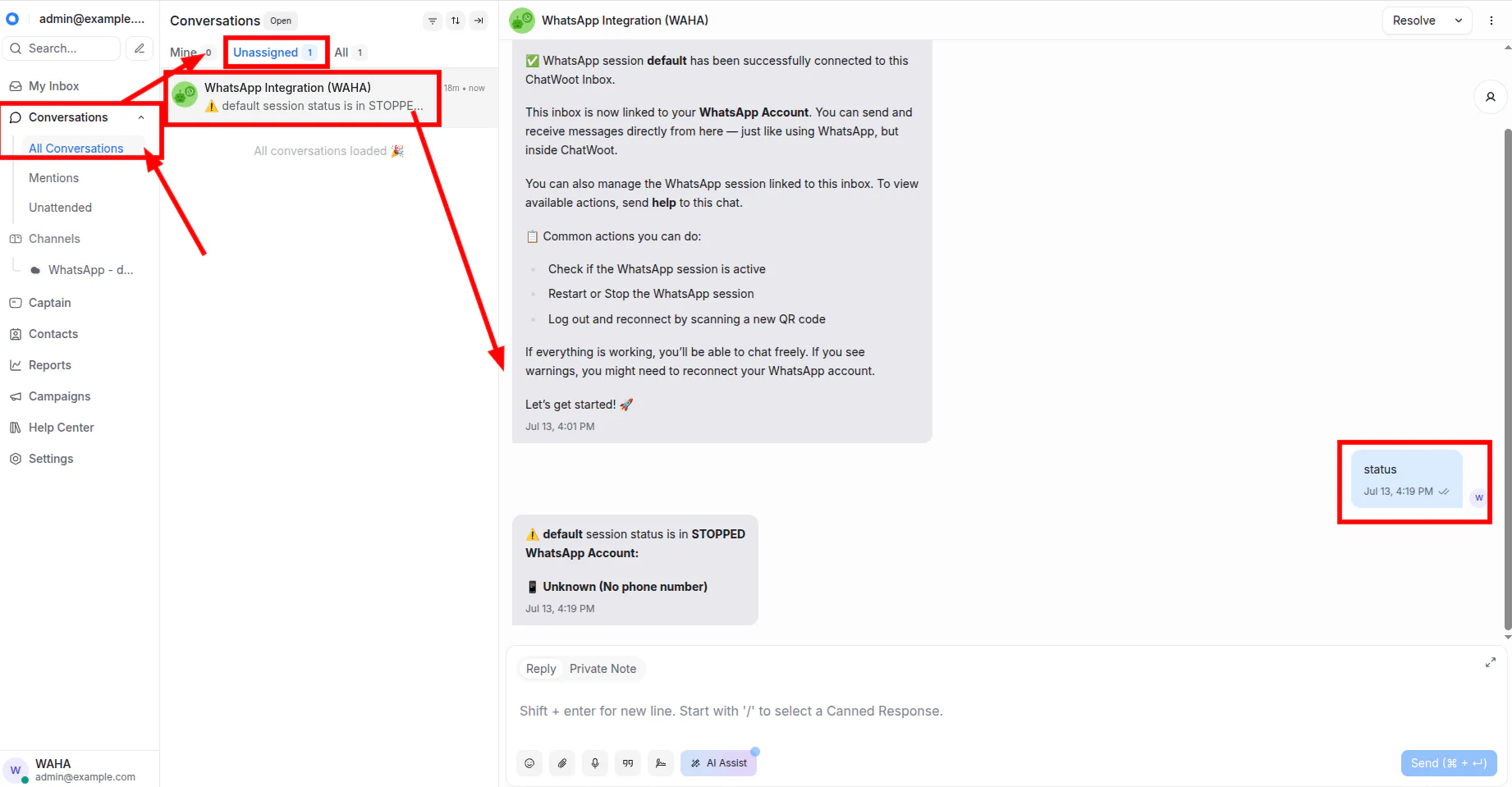

Step 6: Test Integration in ChatWoot

Now you can open a new conversation created by WAHA and send status or help to check that integration is working.

• Go to ChatWoot http://localhost:3009
• Find new WhatsApp Integration (WAHA) conversation
• Send status or help to test WAHA <=> ChatWoot connection

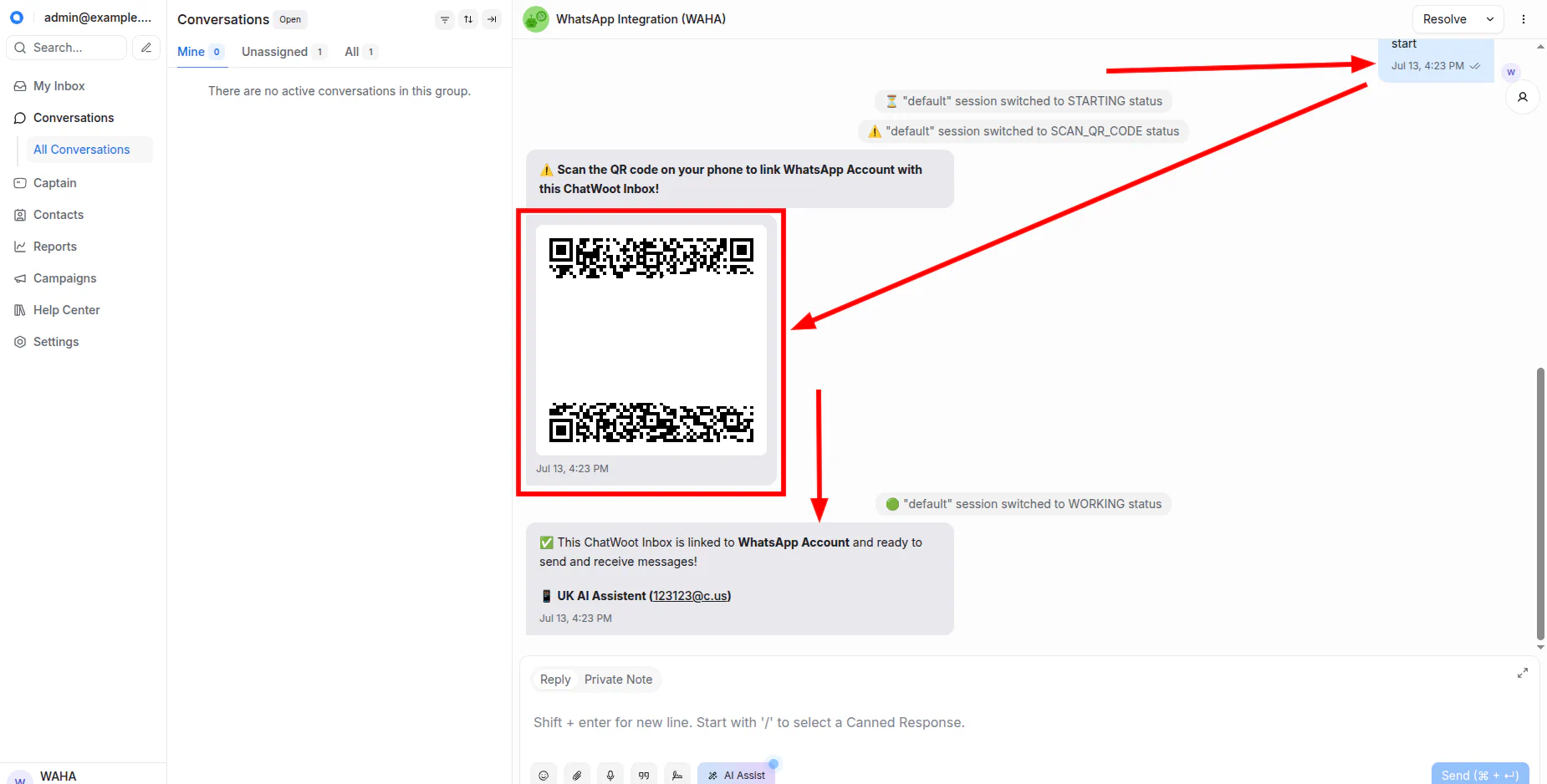

Step 7: Start Session and Scan QR in ChatWoot

• In WhatsApp Integration (WAHA) conversation send start message
• Open WhatsApp on your phone, click More (three dots), Linked Devices, Link a device
• Scan QR code from ChatWoot

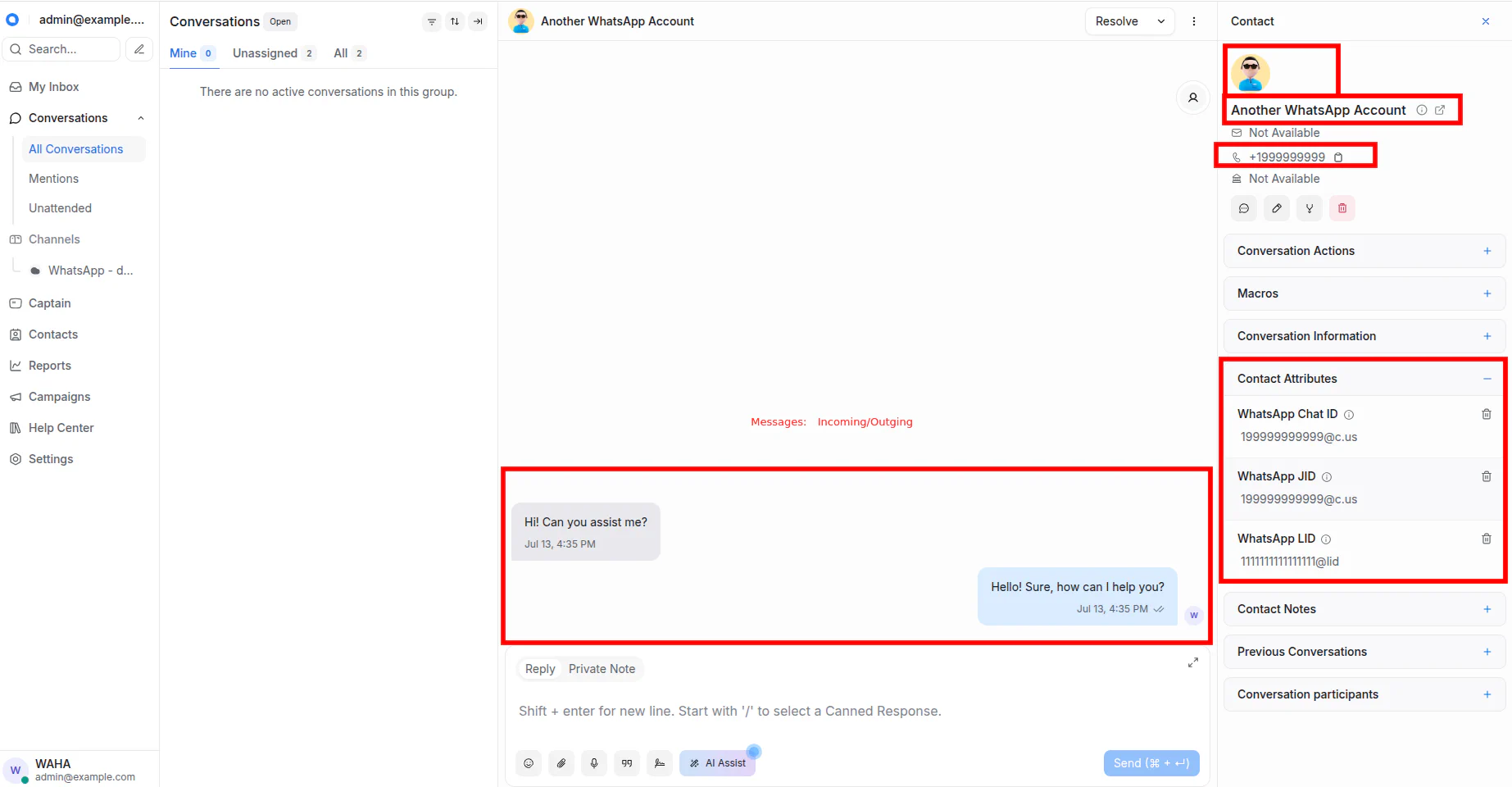

Step 8: Test WhatsApp Integration in ChatWoot

Now let’s see how ChatWoot WhatsApp integration works!

• Send a message from another phone to a connected account using WhatsApp
• Send a response from ChatWoot

What is next?

👉 Setup HTTPS for ChatWoot in WhatsApp + ChatWoot - HTTPS Guide
